Indoor LED Screen

Category

P5 Indoor

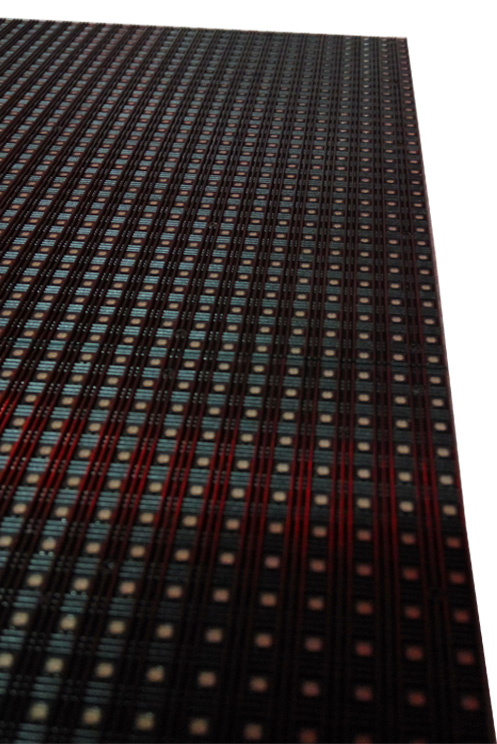

P5 – Indoor

Module
Dimensions (w x h) : 320mm x 160mm
Resolution (w x h) : 64 x 32
Pixel Pitch : 5mm
Pixel Density : 40.000/ m2
LED Lamp : Epistar Chip
Pixel Configuration : BLACK SMD 2727

Cabinet
Dimensions (w x hx d)(mm) : 960x960x150
Module Quantity : 18
Physical Resolution (w x h) : 96 x 96
Pysical Pixel (total) : 9216
Weight/panel (kgs) : 50
Material : Cold rolled steel
Average Power /sqm (watts) : 500
Max Power / sqm (watts) : 1000

Parameter
Brightness : 2.300 cd/m3
Viewing Angle : Horizontal 150(+75/-75)deg. I Vertical 150(+75/-75)deg
Minimum Viewing Distance : 5 meters
Brightness Control : 256 level
Gray scale : 8192 level – 655365 level (adjustable)
Refresh Frequency : >1000 hertz
Driving mode :1/16 scan
Input power Frequency : 50 or 60 hertz
Input voltage : 200v – 240v AC
Blind spot rate : <1/10000
Lifetime at 50% brigthness :100.000 hours
Ingress Protection : Front IP40, Rear IP20
Operating temperature : - 20 ~ + 50 0C
Operating Humidity : 10% ~ 90%
Cintrol distance : CATS cable :<100m ; ingle mode fiber:<10km
Signal input format : AV, 5-Video, VGA, DVI, YpbPr, HDMI, SDI
Operating system : Windows 7
